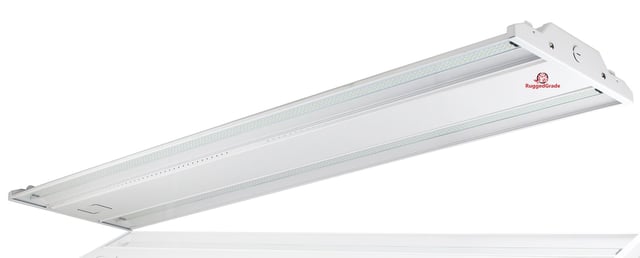

320 watt - Orion III Series -Dimmable LED High Bay Linear Lights - 145 Lumens to Watt - 46,400 Lumens- Replace 750-1000watt Metal Halide or HPS - Bright White 5000K
DLC Listed 5.1 Premium: RGL-ORION3-320W
- BETTER DESIGN - Others claim it, but only ours is independently verified at 145 lumens to watt (140 lumens per watt with frosted lens installed). If its not certified by someone else, its made up! The 300 Watt uses Lumileds SMD 2835 LED modules that produce 145 Lumens per watt - Save even more by using a lower watt unit. Premium grade components make this an industrial grade LED High Bay Linear Bay Light
- PREMIUM SENSOR - Easy to add on 5.8Ghz Microwave sensor is dramatically more accurate. Mounts externally to the light housing. See images. Includes Sensor only.
- DIMMABLE - Series has a 1-10 volt dimmable driver. Compatible with 0-10v, PMW resistance compatible devices and switches.
- SMALLER SIZE - Our New Orion III Series High Bay Linear Light is the latest in LED technology. Smaller, longer lasting and more efficient LED high bay lighting. 300watt only 3ft x 1ft in size, the new design is more compact without sacrificing performance. Projects wide light in a small light. Stop replacing old Metal Halide, HID or CFL bulbs with the new UFO High Bay LED Linear light.
- EASY INSTALLATION - Junction box built right into the unit. No more having to extend a run. Use a drop chain or direct bolt. Simple replacement for existing lights or for new installation. Product Weight of 300 watt is only 14.3 lbs for easy handling.
- BRIGHT, EASY LIGHT and BUILT TO LAST - 5000K color ensures a clear bright light. 100 Degree angle of light spread wide and soft diffuser eliminates glare. 150,000 LED saves having to replace bulbs- Aluminum Housing with high tech Heat Sink protects the LED Driver. Better Heat
- UL AND DLC RATED - UL listed for safety and DLC Premium 5.1 for energy rebates. DLC stands for Design Lighting Consortium and verifies actual light performance. Our 300 watt high bay led lights are verified at over 134 Lumens to watt with the frosted lens!
Orion III Series LED High Bay Lighting System 100,000 Hours Commercial Grade
Replace your old high bay lights, warehouse lights or retail lights with a high efficiency LED area light. Save money and replace bulbs less often with a 150,000 hour rated LED. High Bay LED Lighting Fixture is also ideal for new installations. Save money and improve lighting!
- Input Wattage 320 watt
- Replacement Wattage 750-1000 watt Metal Halide or HPS
- Input Voltage Range 110-277V
- Delivered Lumens 43,435 Lumen (actual DLC number)
- Efficiency 145LM/W
- Color Rendering Index (CRI) 82+
- Color Temperature (Kelvin) 5000K
- Beam Angle 100
- Power Factor 0.99
- Frequency 50/60Hz MAX THD (%) 15
- Min. Ambient Temp -30.0 F / -34.4 C Max. Ambient Temp 130.0 F / 48.9 C
- Dimming Compatible 3 in 1 dimming function (1 10Vdc or PWM signal or rensions: 110 watt and 165 watt are 25" x 12" x 2"; 220 watt is 25" x 14" x 2"; 300 watt is 35" x 15" x 2"; 500 watt is 47" x 13" x 2"
- Product Weight: 110 Watt is 7.1 lbs; 165 watt is 7.7 lbs; 220 watt is 9 lbs; 300 watt is 14.3 lbs; 500 watt is 19 lbs
- Materials Die Cast Aluminum
- Finish White
- LM90 36000+ Hours
- Life Time 150,000 Hours
- UL Listed
- DLC Premium 5.1 Listed
- Rock Solid 5 Year Warranty backed by our US Tech and Support Team
