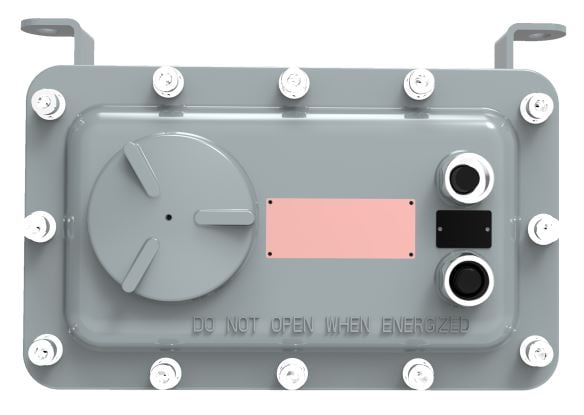

Battery Backup - 10 watt - 3 Hour - Ideal for adding to Caladan series Hazard Lights - Drives LED loads at 10W (nominal) for a minimum of 90 minutes - Class I Div II Approved
Fitment Guide:
61-144(120 Watt LED Vulcan II)
61-182(200W Vulcan II)
61-135(60W Caladan)
61-136(100W Caladan)
61-137(150W Caladan)
61-138(150W Caladan HV)
61-139(150W Caladan + Spherical Glass)
Please note that this item will work with any 0-10V Hazard light ranging from 20-400W(The fixture must have dimming wires attached)
Rating and Certificates:
- Class I, Division 1, Groups C, D
- Class I, Division 2, Groups A, B, C, D
- IP66 / Wet Locations
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 844 Hazardous Locations
- UL 924 Emergency Lighting
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 8750 LED Safety
- ETL NEMA 4X
- Impact level: IK10 (enclosure)
Features:
- 3-hour emergency operation.
- Hinged access door.
- Max Voltage: AC800V
- Compatible current range: 24 400A
- Supported fixture power: 20 400W
- Long lifespan up to 50,000 hours.
- Working temperature:
- -40 C to +65 C (-40 F to +149 F).
- 5-year limited warranty.
ELECTRICAL SPECIFICATIONS
INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS
Family Input Voltage Power Factor Max. Current Max. Output Power Rated Output Current Output Voltage
- Compatible current range: 24 400A
- Supported fixture power: 20 400W
