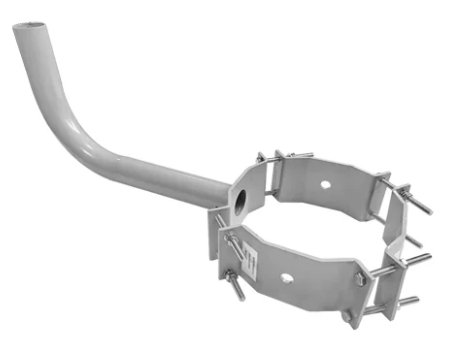

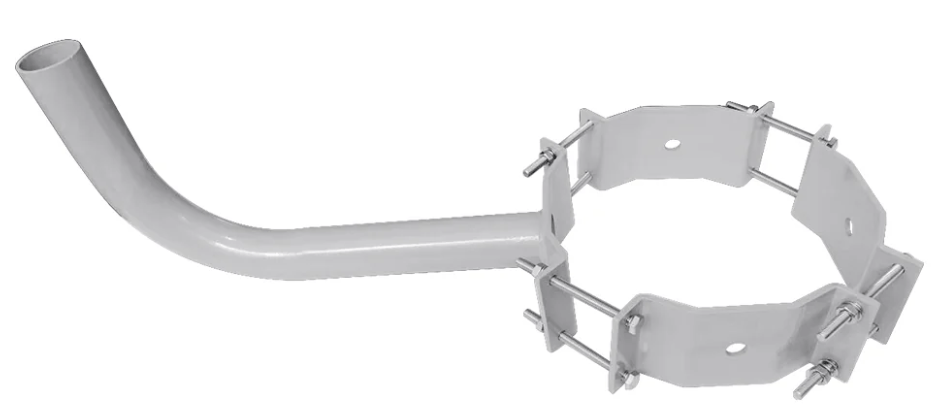

Wrap Around Mount for Wood and Concrete Poles 10" to 13" Diameter - Single Light Version - 90 Degree Angle - Mounting Bracket for Parking Lot, Street & Area Lights
- HEAVY DUTY Compre the size! 10-13 inch round heavy duty design. There are cheaper smaller brackets but only ours ensures the bracket and light stay up and last. Protective paint ensures long lasting finish. Does not include hardware.
- LARGE INDUSTRIAL SIZE Bracket protrudes 10-13 inches from the pole. The arm sticks up 12 inches (from center of arm). Tube is 2 3/8 inches wide.
- FLEXIBLE USES - Designed to allow any of our slip fit parking lot lights, Street lights or solar street lights to be mounted to a pole. No drilling or modifications needed to the light pole.
- EASY INSTALL & INSTRUCTIONS Bracket is easy to install. Run the wiring through and secure to pole with 8 1/2-13 HHCS w/Hex Nut, Flat and Lock Washer (hardware not included). Wire the light and then slide the light over the arm. Rotate the light where you need it and secure the slip fit to the bracket. Adjust the light both up and down and then tighten down. Double check all bolts and perform a safety check.
- QUALITY AND WARRANTY High quality design is backed by our 5 Year Warranty.
Heavy Duty Light Bracket Series Wall and Post light adapters
Our adapter series allows you to complete your lighting project with ease! Whether you are needing different adapters for your light pole, or wanting to mount a slip fit light to a wall, we have what you need.

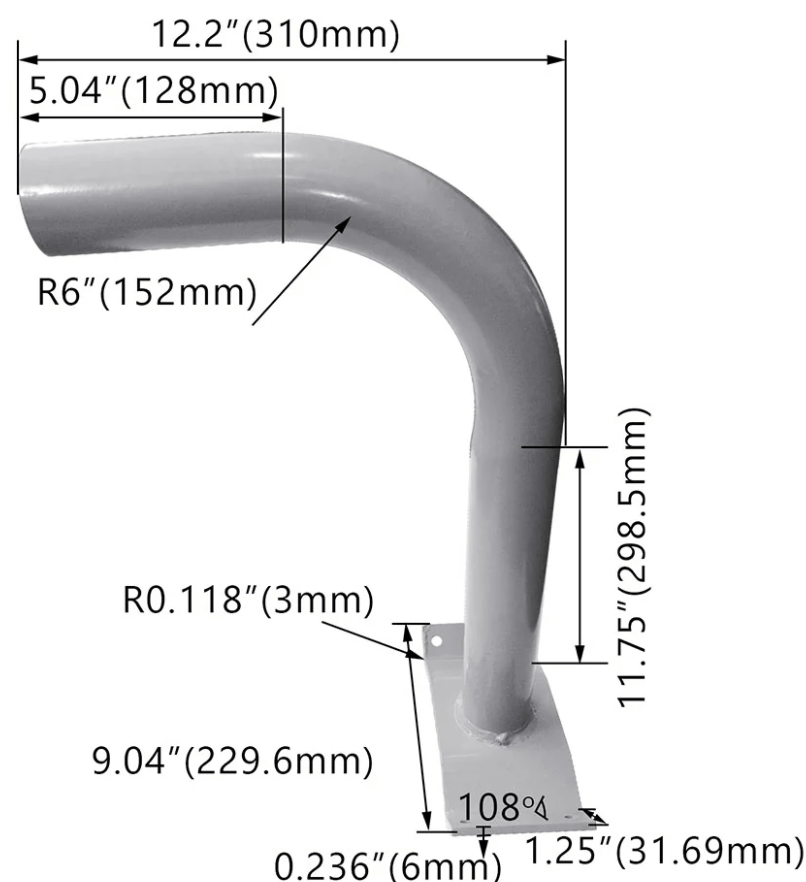

This right angle pole mount bracket is 16" long from the pole and 12" up and weighs 21lbs. It is rated to hold lights up 50lbs(even our 800W Centario lights with slip fit are under 50lbs). It is made of thick steel. It is a single tenon configuration for slip-fitting units. This pole mount bracket is suitable as part of a commercial or industrial lighting solution. Rated for indoor or outdoor use.
- Heavy Duty Steel Construction
- Large Size - 10-13 Inch Diameter. Stand the Test of Time!
- Practical Design, works in any area
- 2 3/8 inch tube allows for slip fits to slide over
- Please note that NO hardware is included
- Warranty 5 Years
Rugged Grade LED products. Industrial Grade solutions
