Good parking lot lighting starts with choosing a pole that fits the property. Mounting height influences how far light travels, how evenly it covers the pavement, and how many fixtures a project may require.

A 25 foot light pole offers the height needed to illuminate larger commercial parking areas, drive aisles, and nearby walkways. Paired with the right LED fixture, it can provide broad coverage while helping property owners avoid unnecessary dark spots and overly bright areas.

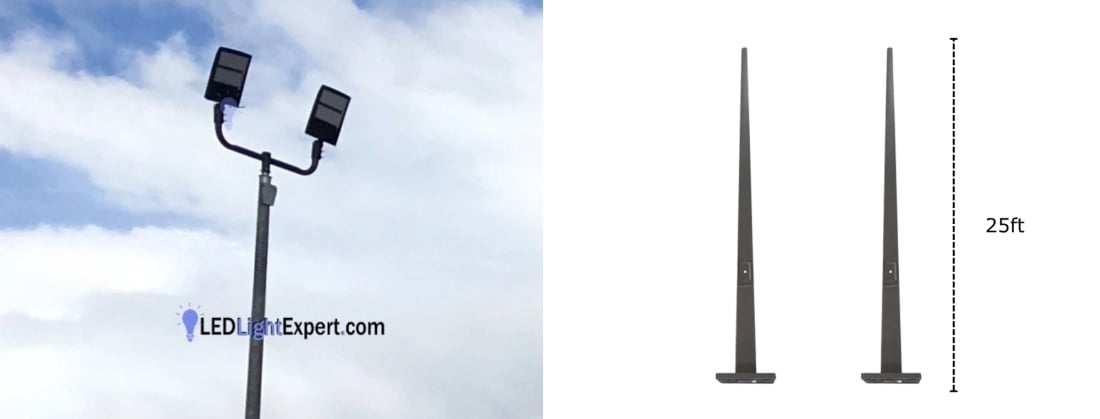

25 Foot Light Pole- 4 inch Square Tube light Pole - Black - Premium Surface Mount Light Poles

What Are 25 Foot Light Poles?

A 25 foot pole is a commercial lighting structure intended to support outdoor fixtures at approximately 25 feet above its base or mounting surface. These poles are commonly used at shopping centers, office buildings, warehouses, schools, apartment communities, and industrial facilities.

The stated pole height does not always match the fixture’s actual height above the pavement. A base-mounted pole installed on a raised concrete foundation can position the light higher than 25 feet above grade. For direct-burial installations, part of the pole sits underground, so additional total shaft length is necessary if the fixture must reach approximately 25 feet above ground.

Mounting arms, tenons, and fixture placement can also affect the finished height.

Compared with shorter 15-foot or 20-foot models, a 25 ft light pole gives properly selected fixtures more opportunity to distribute light across wider sections of a parking lot.

Why Choose 25 Foot Light Poles for Parking Lots?

Commercial parking lots often need coverage across parking spaces, drive lanes, loading areas, sidewalks, and entrances. A 25 foot light pole can serve several of these areas at once, depending on fixture output, pole placement, and distribution pattern.

The added mounting height may also allow greater spacing between fixtures compared with shorter poles. When supported by a proper lighting plan, wider spacing can reduce the number of poles, foundations, and underground wiring runs required.

For larger retail centers, office complexes, and industrial properties, 25 ft light poles offer a practical balance between coverage and mounting height. They provide more reach than shorter poles without necessarily requiring the much taller structures used for stadiums or large-area industrial applications.

However, height alone does not create good lighting. Fixtures still need the right lumen output and optical distribution to maintain consistent illumination and limit glare.

How Far Apart Should 25 Foot Light Poles Be?

There is no single spacing measurement that works for every 25 ft light pole installation. Two properties can use poles of the same height and still require completely different layouts.

The correct distance depends on several factors:

• Fixture lumen output: Higher-output fixtures may cover larger areas, depending on their optics and mounting configuration.
• Beam angle: The beam affects how broadly or narrowly light spreads across the pavement.
• Optical distribution: Different distributions direct light toward drive lanes, parking stalls, open areas, or property boundaries.
• Parking lot dimensions: The width, length, and shape of the property influence pole placement.
• Required footcandle levels: Light levels should match the needs of the property and applicable project requirements.
• Uniformity: A consistent balance between brighter and darker areas improves visibility throughout the parking lot. Spacing poles too far apart can leave dark gaps between fixtures. Placing them too close together can create bright hotspots, increase installation costs, and waste electricity.
• Photometric plan: A photometric plan calculates projected light levels and shows how the selected fixtures will perform across the property before installation begins.

25ft Pole Light Mounting Options

The mounting method determines how an LED fixture connects to the pole and which direction it faces.

Direct-arm mounting: The fixture attaches to an arm extending from the pole. This configuration is commonly used to direct light over parking spaces, sidewalks, and drive aisles.

Slip-fitter mounting: A slip-fitter slides over a compatible round tenon and is secured with set screws. Many slip-fit fixtures allow directional adjustment, which can help position the light where it is needed.

Tenon-mounted fixtures: A tenon adapter creates a connection point for compatible slip-fit fixtures. Depending on the adapter, one pole may support a single fixture or multiple fixtures facing different directions.

Adjustable configurations: Adjustable brackets and mounting accessories allow changes to fixture positioning. These options can be useful for properties with unusual layouts or specific coverage requirements.

Mount selection should account for fixture compatibility, pole dimensions, fixture weight, wind exposure, and the pole’s structural rating.

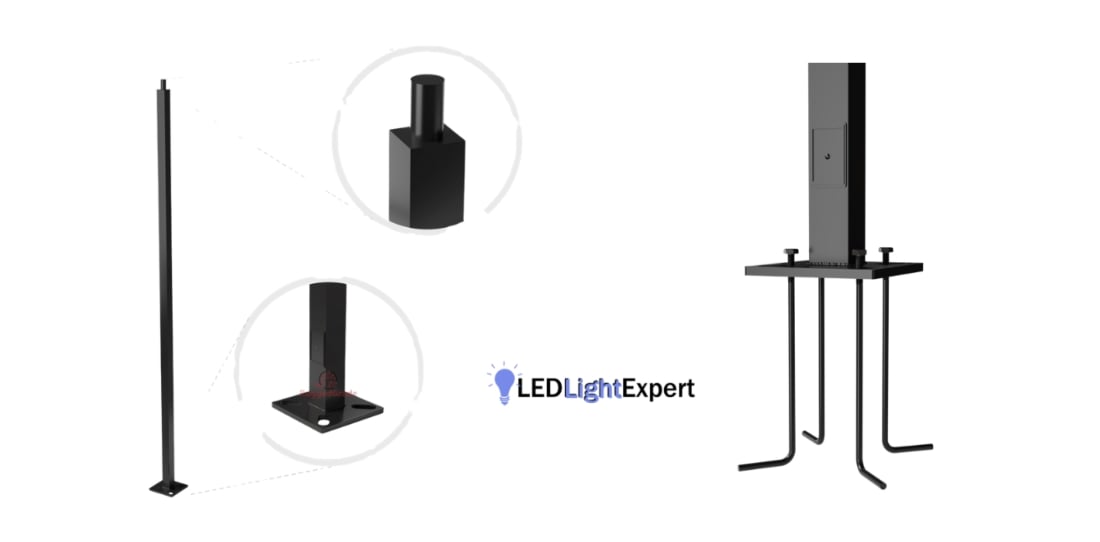

25 Foot Steel Light Pole - 4 inch Round Tube Light Pole

Find the Right 25 Foot Light Pole

Explore 25 ft light poles, LED parking lot fixtures, mounting arms, and tenon adapters at LED Light Expert. For assistance selecting the right poles and fixtures for a commercial lighting project, call (888) 827-2920.
