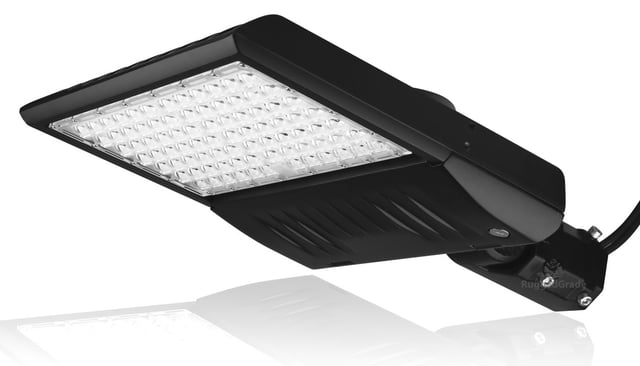

185 Watt LED NextGen XT II Series Parking Lot Lights - 30,000 Lumen - Super Efficiency 5050 LEDs get 170 Lumen to Watt - 5000K Bright White - Replaces 750W HID Metal Halide - LED Shoebox Lights -Slip Fit Mount - DLC Premium - WITH PHOTOCELL
XT=Xtreme Performance. Uses Lumileds 5050 LEDs to get 170 lumens to watt.
DLC Premium Product Code: RGL-SBXT-2-185WA50T3A2 / Product ID: PL9GIA8SDLDX
- BETTER DESIGN Our NextGen XT 2 Series Model LED Parking Lot Light uses new Lumileds 5050 LED modules that produce up to 170 Lumens per watt - Save even more by using a lower watt unit and still getting the light you need. Focus on your lumen needs, not on watts. This LED area light only uses Premium grade LED components. High strength housing make this an industrial grade LED Parking lot or Shoebox light.
- BUG RATING - What is it? Industry term for Backlight, Uplight and Glare. These either waste light or are harsh on the eyes. Already low on the Nextgen II, these are further minimized in the XT2. Sub 20% backlight and sub .5% uplight. More light where you want it! The NextGen XT was already good and now the leading performance of the NextGen series continues with the XT2.
- BRIGHT LIGHT - 185 Watt LED puts out 30,000 Lumens and can replace a 400 or 500 watt Metal halide MH or HPS/HID light. 5000K light color ensures a bright clear light. Light can be used as Parking Lot Lights, Sports Court Lights, Street Lights, walkways, roadways or any other use.
- PHOTOCELL INCLUDED - This model has a 3 prong photocell receptacle on top
- 0-10V DIMMABLE & EASY ADJUSTABLE MOUNT Driver is 0-10V dimmable. Light comes with an adjustable slip mount designed to fit on standard circular poles. Inner diameter is 2 3/8 inches, so pole can be 2 - 2.4inches. With slip mount the LED Parking Lot light can be angled up or down depending on if you are mounting vertical or horizontal. The most versatile mount option.
- BUILT TO LAST - 100,000 LED saves having to replace bulbs- Aluminum Housing with high tech Heat Sink. Better Heat dissipation ensures longer LED life and safety. IP65 Waterproof for all weather conditions. All backed by a 7 year warranty.
- CERTIFIED - UL Listed and DLC Premium 5.1 verified for safety and rebate eligibility. UL Certified products ensure better quality, safety and reliability. DLC is the Design Lights Consortium for independent verification. Even with the difficult Premium 5.1 tests, they have certified the light at 158 lumens to watt.
NextGen XT II Series Xtreme Performance LED Area and Parking lot Lights and Shoebox Lighting System 170 Lumens to watt 150,000 Hours Commercial Grade
Our new XT-2 Series continues on the NextGen Performance Legacy. Upgrade to 5050 LEDs. The larger 5050 LEDs can exceed 175 lumens to watt while delivering low THD and high color. Combined with a Sosen VP driver and additional 10KV surge device, the XT-2 was built to perform with a 7 year warranty. The very best is LED Area Lighting is the NextGen XT2.
Replace your old 400, 500 or even 600 Metal Halide outdoor parking lot lights with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your parking lot, walkways and sports court for safety and aesthetics.
- Input Voltage Range: 100-277VAC
- Driver: Top-Tier Sosen VP Series
- Exceeds Title 24 LED Requirements
- Additional 10 Kilovolt Surge Protector Built in
- Respirator installed for pressure equalization in compartment
- Frequency: 50/60Hz
- Power Factor: >0.91
- MAX THD(%): 12
- 185 Watt Light is 13.5lbs and is 22x13 inches, box is Approx 26x15x6 Inches
- 300 Watt Light is 22lbs and is 30x13 inches, box is approx 33x15x6.5 inches
- LEDs - Lumileds 5050
- Up to 170 Lumen to watt
- Light Angle: 150 x 85 degree. Type III
- Dimmable: Yes (all NextGen XT wattages are 0-10v compatible)
- Color Rendering Index (CRI): 75+
- Color Temperature (CCT): 5000K. (4000 and 5700K also available)-
- Lens Materials: Optical Polycarbonate
- Housing Materials: Die Cast Aluminum
- IP Rating: IP65 Outdoor Waterproof Rated
- Certification: UL Listed, cUL Listed
- Certification: DLC 5.1 Premium Listed
- LM90 36,000 hours
- Life Span: 150000+ Hours
- Warranty: 7 Years
