Shop and Barn Lighting Case Study

UFO LED High Bay Lights for Shop & Barn Applications

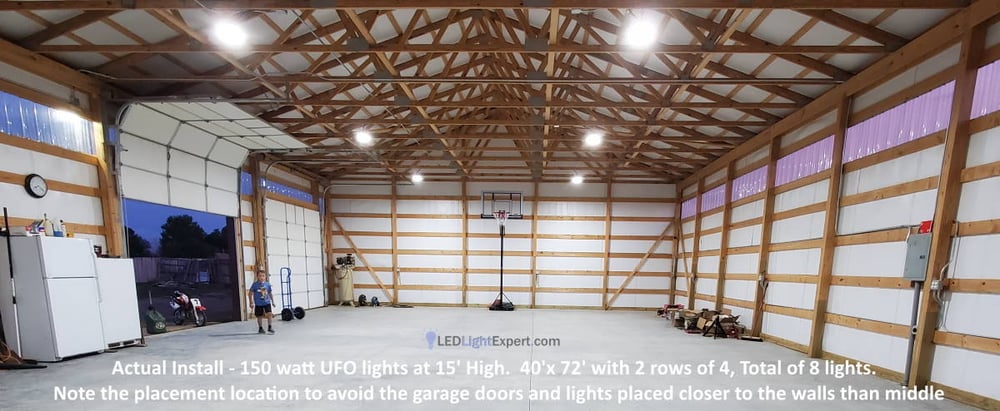

In this scenario we are about 15' high. The 8 lights gave useful distribution at this height for this layout. Going up to 15-18' just improves the uniformity and at 20'+, moving up to the 240 watt lights is advisable. When setting up lighting in a barn, it's crucial to select the right type of fixtures, such as UFO LED high bay lights, which are known for their efficient light distribution.

At a height of about 15 feet, using eight high bay UFO LED lights can provide useful coverage when spacing, mounting height, beam angle, and target light levels are matched to the space. As the ceiling height increases to between 15 and 18 feet, the distribution becomes even more uniform, making UFO lights a practical choice for many mid-height shop and barn layouts.

For ceilings higher than 20 feet, upgrading to stronger 240 watt UFO lights compensates for the distance the light travels to the ground, thereby preserving the brightness and effectiveness necessary for a safe and functional barn environment.

Installation Photos

What Advantages do LED UFO High Bay Lights Offer for Barn Lighting Compared to Other Options?

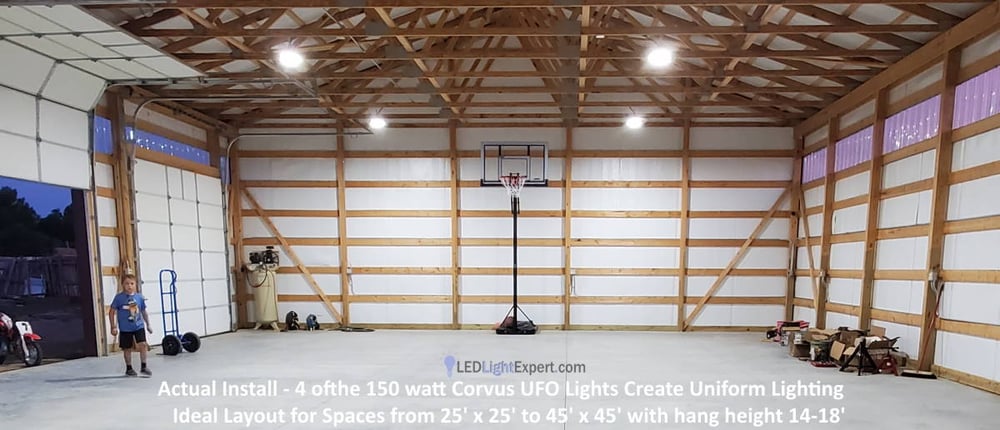

UFO LED high bay lights are well known for their versatility making them a practical option for locations, including barn sizes like 40 x 40 feet. With four UFO high bay lights in a space of this size you can effectively light up the area. This wide coverage is achieved thanks to the intensity and broad light distribution angle that UFO lights offer. Their round design helps spread light evenly, reducing dark spots when fixture spacing is planned correctly. Moreover the compact and sturdy build of UFO LED high bay lights makes them useful in environments requiring reliable lighting solutions. For storage, maintenance, and equipment work, these lights provide useful illumination while staying energy efficient, an important factor in managing operating costs.

What Are The Key Advantages of Utilizing LED UFO High Bay Lights?

UFO LED high bay lights offer several compelling advantages that make them an excellent choice for barn and shop lighting:

Instant On/Off Capability

Unlike traditional metal halide lamps that require warm-up time, UFO LED high bay lights turn on instantly to full brightness. This means you get immediate illumination when you need it, improving safety and convenience in your barn or shop.

Dimming Capabilities

These fixtures can be dimmed to match specific lighting needs throughout the day and for different tasks. Whether you need full brightness for detailed work or lower levels during quieter hours, UFO lights provide flexibility in your lighting control.

Customizable Color Temperatures

UFO high bay lights are available in different color temperatures, allowing you to select the right warmth or coolness for your space. This can improve visibility and create a more comfortable working environment for your team.

Multiple Wattage Options

Different applications require different power levels. UFO lights come in various wattages (typically 100W, 150W, 240W) so you can match the right fixture to your ceiling height and space size for optimal efficiency and coverage.

Well-Suited for Mid-Sized Areas

UFO high bay lights excel in spaces ranging from 25'x25' to 45'x45' — the sweet spot for many barns and agricultural workshops. Their light distribution pattern works well for these dimensions when the mounting height and wattage are matched correctly.

Common Hanging Height: 14-18 Feet

The most effective installation height for UFO lights in barn and shop environments is 14 to 18 feet. At this height, you can balance uniform light coverage and efficient energy use. Going higher (20'+) simply requires upgrading to 240W models.

Uniform Lighting for Workshops, Retail, and Facilities

For equipment storage, livestock operations, retail display, or workshop activities, UFO lights deliver consistent, even illumination across the entire space. This uniform coverage reduces accidents, improves visibility for detail work, and creates a more professional appearance.

In Conclusion

UFO LED high bay lights provide a highly adaptable and effective lighting solution for various spaces and needs, from smaller barns to larger industrial settings. Their efficiency, reliability, and light quality make them a practical choice for barn and shop owners seeking to upgrade from traditional metal halide or HPS fixtures. With options ranging from 100 watts for lower heights to 240 watts for ceilings above 20 feet, you can choose a UFO configuration that fits your space. Combined with a 50,000+ hour lifespan and instant-on capability, UFO high bay lights can deliver both immediate and long-term value by reducing wattage and improving visibility in your barn or shop when the layout is planned correctly.

Ready to compare UFO LED high bay lights for your barn, shop, or warehouse? Explore options for warehouse lighting solutions or learn more about comparing UFO and linear high bay lights to determine the right fit for your specific space and application.
