UFO LED Shop Lights

Why UFO Fixtures Work in Many Shop Layouts

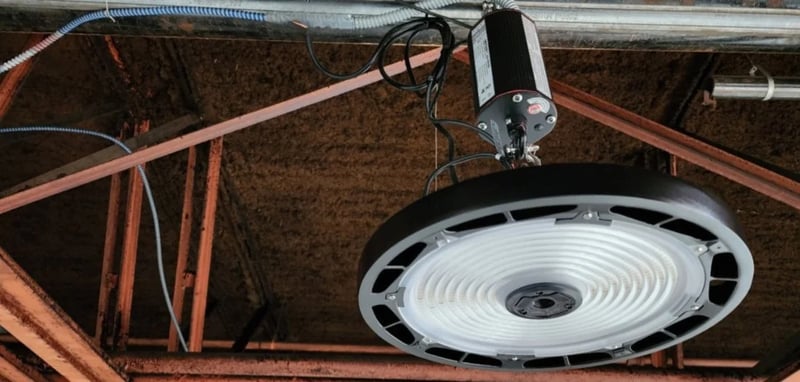

The UFO high bay earned its name from its distinctive round, disc-shaped housing — and it is common in shop environments for practical reasons. The compact form factor packs high lumen output into a fixture that hangs from a single mounting point, installs in minutes, and fits in spaces where a 4-foot linear fixture would not. For auto repair shops, home garages, woodworking studios, and fabrication spaces where ceiling obstructions (ducts, beams, door tracks, storage racks) leave irregular mounting opportunities, the UFO's point-source design slips into gaps that rectangular fixtures cannot.

The optical design is equally practical. A UFO shop light with a 120-degree beam angle distributes light in a broad circular pattern below the fixture, covering roughly a 15-foot diameter area from a 10-foot mounting height. The result is even, shadow-reducing illumination across the work surface — critical for tasks like reading gauges, inspecting paint finishes, sorting hardware, and any detailed work where shadows from overhead obstructions create visibility problems. At 140 to 160 lumens per watt, a single 150W UFO produces 21,000 to 24,000 lumens from a fixture that weighs 8 to 12 pounds and measures 14 to 18 inches across.

Commercial and Residential Grade Differences

Not all UFO shop lights are built the same. Commercial-grade models feature die-cast aluminum housings with integrated heat fins, tempered glass or polycarbonate lens covers, IP65 ratings for dust and moisture protection, and UL/DLC certification. Residential-grade UFOs often use thinner housings, plastic lenses, and lower-rated drivers that may not survive the temperature swings, vibration, and moisture exposure common in working shops. For any space where the lights run 8 or more hours per day or where the environment includes dust, humidity, or temperature extremes, commercial-grade is the correct specification.

Sizing Your UFO Shop Light Installation

The number and wattage of UFO fixtures depends on three variables: floor area, mounting height, and target illumination level. For general shop work (50 foot-candles), plan for roughly 30 to 40 watts of LED per 100 square feet at a 10-foot mounting height. For detailed tasks (75 to 100 foot-candles), increase to 50 to 60 watts per 100 square feet. These rules of thumb work for typical rectangular spaces with light-colored walls and ceilings; dark surfaces, irregular layouts, or high racking reduce reflected light and may require additional fixtures.

Mounting Height Guidelines

UFO shop lights perform best at 10 to 25 feet. Below 10 feet, the fixture may produce a visible bright spot directly below with dimmer areas between fixtures — use wider beam angles (120 degrees or more) to mitigate this. Above 25 feet, the inverse-square law reduces light reaching the floor significantly — step up to higher-wattage models (200W or more) or reduce fixture spacing. For more information on UFO high bay options across all wattage ranges, see our UFO high bay lights collection.

Wiring and Voltage

Most UFO shop lights accept 120-277V input, making them compatible with both standard residential 120V circuits and commercial 208/240/277V service. A typical 150W UFO draws 1.25 amps on a 120V circuit or 0.63 amps on a 240V circuit. For multi-fixture installations on a single circuit, calculate the total amperage and ensure it does not exceed 80 percent of the circuit breaker rating (standard NEC requirement for continuous loads). A 20-amp 120V circuit can safely support up to 12 fixtures at 150W each — well beyond what most single-room shops require.
