Quick Answer

Warehouse and shop photometric studies show how mounting height, aisle layout, fixture count, and wattage affect working light levels. The study links and images are below.

Warehouse and Shop Light Photometric Study Examples

Effective warehouse and shop lighting is important to workplace visibility, task performance, productivity, safety awareness, and operational efficiency in industrial and commercial environments. On this page, LED Light Expert showcases detailed photometric light study examples that demonstrate how LED warehouse and shop lighting layouts can be planned to meet demanding illumination needs in large-scale storage facilities, manufacturing spaces, and work areas.

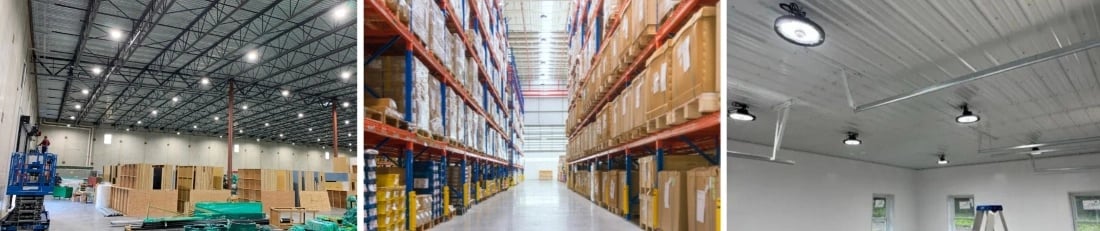

LED Warehouse Shop Lights Installation Examples - LED Light Expert

See how well-specified LED warehouse and shop lights can deliver more uniform working illumination throughout industrial and commercial workspaces when mounting height, spacing, output, and optics are selected correctly. Below, you'll find links to real photometric light studies featuring different LED high bay and shop light models/series that show how better-planned lighting can support visibility, task accuracy, safety awareness, productivity goals, and efficient work environments.

LED Warehouse and Shop Lighting Options

Key Takeaway: Warehouse lighting should match the task: storage, picking, manufacturing, vehicle work, or general shop use. Compare footcandles, uniformity, mounting height, and shadows before choosing fixtures.

How to Use These Study Examples

Use these real examples as planning references, not one-size-fits-all prescriptions. Site dimensions, pole setbacks, mounting height, beam angle, voltage, local code, and target light levels can all change the fixture count and aiming plan.

When comparing studies, look at the field or area size, pole height, fixture count, wattage, average footcandles, and whether the layout controls spill light outside the target area.

For warehouses, also compare aisle spacing, rack height, task type, forklift traffic, and shadowing below shelving or equipment. A layout that works for storage may not be bright enough for picking, assembly, inspection, packing, quality control, maintenance bays, or vehicle work. Use the examples to frame questions before requesting a project-specific light study.

Photometric Study FAQs

What does a warehouse and shop lighting photometric study show?

It shows expected light levels, fixture locations, aiming, mounting heights, beam patterns, and uniformity before installation. The goal is to confirm the lighting plan before fixtures are ordered; for new projects, request a free photometric lighting study with site dimensions and mounting details.

Why are average footcandles not the only number to review?

Average footcandles can look good even when some areas are too bright and others are too dark. Review uniformity, glare, pole placement, and spill light along with the average.

What should I send for a lighting layout?

Send dimensions, mounting heights, pole locations, voltage, photos, target light levels, and any code, neighbor, camera, or spill-light requirements. More site detail makes the layout more useful.
