Quick Answer
Adjustable LED wall lights let commercial property owners aim light exactly where it is needed — facades, signage, loading docks, walkways, and security perimeters — using tilt-and-lock heads that rotate 350° horizontally and 90° vertically. A 40-80W adjustable LED wall pack replaces a 150-250W metal halide at 130-150 lm/W, cuts energy use 50-70%, and delivers IP65 weather durability plus 100,000-hour L70 life with no relamping.

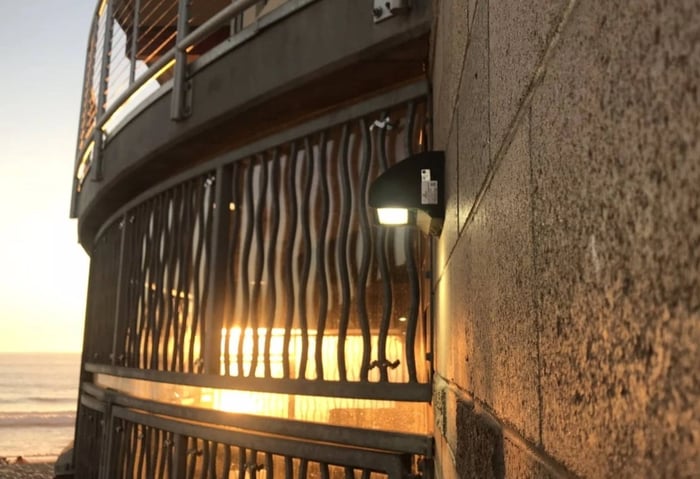

As the sun sets, adjustable wall lights around commercial properties begin to glow, transforming ordinary exteriors into captivating nocturnal venues. Beyond aesthetics, these versatile fixtures also serve important functional roles from illuminating pathways to providing essential security lighting — with modern LED adjustable wall packs delivering 130-150 lumens per watt, DLC Premium efficacy, and mounting versatility that legacy HID or fluorescent fixtures cannot match.
For commercial property owners and managers, adjustable wall lights check all the boxes, blending form and function seamlessly. This guide explores how to leverage these fixtures to create stunning, safe, and sustainable outdoor environments for your businesses — from beam-angle selection and mounting height math to photocell logic, IP65 durability, and the adjustable LED wall lights category that houses our most popular tilt-and-lock options.
Why Use Adjustable Wall Lights for Commercial Outdoor Spaces?
Unlike static lighting, adjustable wall lights empower businesses to direct lighting precisely where needed. This proves invaluable for diverse commercial spaces facing varied lighting needs. A tilt-lock head that rotates 350° horizontally and pivots 90° vertically lets the installer aim the beam at signage, a drive aisle, or a loading bay without changing the fixture or mounting bracket.
Restaurants may spotlight architectural details, then reshape the beams to illuminate menu boards or cordon off dining areas later in the evening. Hotels can highlight lush landscaping, then adjust fixtures to guide guests indoors. Storefronts can create display visibility after hours without keeping the entire building illuminated — trimming overnight energy by 30-50% when paired with photocell and bi-level motion controls.
Beyond the practical perks, adjustable wall lights serve an important aesthetic role, elevating exterior ambiance and branding. They constitute an excellent LED wall light option. Commercial property owners view building facades as valuable marketing real estate for showcasing logos, interesting design features, and more. Adjustable fixtures ensure those important details shine when visible — without spilling light onto neighboring parcels, which is especially important on sites subject to municipal light-trespass ordinances or dark-sky zoning.
Building Beautifully Lit Environments
Additionally, adjustable wall lights set the scene for hospitality sectors creating inviting mood lighting. A hotel may use warm 3000K adjustable wall lights (instead of utilitarian 5000K) to create inviting atmospheres around entrance ways, with CRI 80+ output that renders skin tones and landscape color naturally. Even industrial buildings can enhance their curb appeal and capture attention with strategically placed exterior lighting aimed at architectural features like metal panel seams, brick veneer, or anodized aluminum entrance canopies.
Key Considerations for Adjustable Wall Lights for Commercial Outdoor Lighting
When selecting adjustable wall lights, facility managers weigh several considerations — and the IES RP-33 Recommended Practice for Outdoor Environments provides useful foot-candle targets for walkways (0.5-1.0 fc average), entrance approaches (2.0-5.0 fc), and loading docks (5.0-10.0 fc).
Safety & Security
Eliminating dark pockets around commercial buildings is crucial for safeguarding people, property, and assets. Adjustable lighting tackles this challenge through strategic lighting: parking lots, perimeter fences, loading docks, exits, and more. Light deters unwelcome visitors while ensuring staff and authorized guests can traverse properties safely after hours. Type III and Type IV IESNA distributions are the typical choice for wall-mounted perimeter lighting — Type III throws light forward and laterally for parking aisle coverage, Type IV projects a forward-heavy rectangular pattern ideal for building-edge walkways.
Energy Efficiency & Cost Savings
Utility costs add up over the course of a year, especially for higher wattage lighting left on overnight simply for security reasons. But with strategically placed adjustable fixtures, businesses avoid wasting electricity and money powering unnecessary spaces. Lights stay focused only on required zones rather than flooding entire properties.
And choosing modern LED adjustable wall lights over dated high-intensity discharge (HID) or fluorescent fixtures can reduce power demand when the replacement is properly matched to the site. A 250W metal halide wall pack draws roughly 290W at the line (including ballast losses) and delivers about 55-65 maintained foot-candle-hours per watt over life. An 80W LED adjustable wall pack draws 82-85W at the line and delivers 130-150 lm/W with lumen maintenance that depends on thermal design, driver quality, and operating conditions. So properties brightly illuminate only designated safety and security zones while achieving substantial energy and cost reductions.
These durable LED fixtures deliver reliable operation for 100,000-plus hours — verified under the LM-80 and TM-21 extrapolation methods — eliminating the routine bulb replacements required for shorter-lived legacy lamp options. Top-tier LED fixtures carry DLC Premium qualification, UL 1598 outdoor wet-location listing, and Class 2 constant-current drivers with surge protection to 10kV — meaning fewer lighting servicing disruptions and lower operating costs over decades of use.
What Types of Adjustable Wall Lights for Commercial Use Are Available?
Spotlights & Accent Lights
Spotlights provide focused, directional beams ideal for:
- Highlighting architectural details from cornices to columns (10-25° narrow beam angles)
- Showcasing eye-catching outdoor signage and displays (flag lighting at 15-30° beam)
- Creating depth and dimension by modulating beam angles and layering warm and cool accents

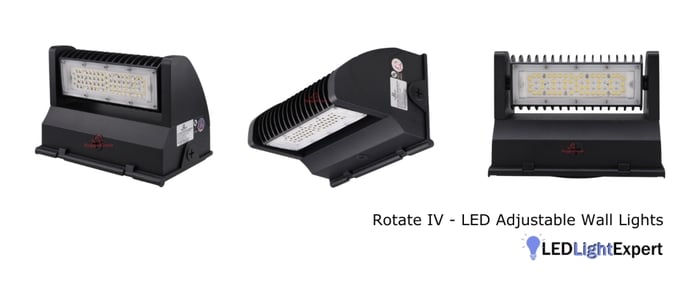

For example, the Rotate III Series 80W and the Rotate IV Series are great options for versatile lighting. The Rotate III delivers 10,600 lumens at 132 lm/W with a 350° rotating head and IP65 waterproof rating; the Rotate IV adds wattage-selectable output (20W/25W/30W/35W/40W on-fixture) so a single SKU can be field-tuned to match the application — useful on multi-building campuses where perimeter, entrance, and service-area fixtures need different outputs but identical aesthetics.
Ambient Area Lighting
While spotlights provide feature and accent illumination, ambient lighting establishes general brightness throughout an entire commercial outdoor area. This widespread glow promotes safety and navigation across large common spaces like:
- Sprawling parking lots (Type III asymmetric distribution)
- Busy dining patios (Type V symmetric for centered coverage)
- Designated smoking areas and break zones
- Recessed building entrance ways (Type II forward throw)
- Meandering garden pathways (Type IV wall-edge wash)
For smooth, glare-free illumination suitable for ambient fills, asymmetric adjustable wall lights work beautifully. Their wider distributions bathe areas consistently without intense hot spots that cause visual discomfort. BUG ratings (Backlight, Uplight, Glare) of B1-U0-G1 or lower are the practical target for commercial perimeter lighting — U0 uplight in particular is required for dark-sky compliance and many municipal ordinances.
Within ambient zones, businesses still need flexibility. Wall-mounted area lights offer adjustability for tweaking directionality or intensity in specific locales to eliminate shadows or variations in brightness. Fixture heads twist, tilt, and lock as needed to cast flawless ambient light from corner to corner. A photocell integrated into the fixture switches the light on at roughly 1.5 fc ambient and off at roughly 3.0 fc, with a 60-second delay that filters out momentary shading from passing vehicles or clouds.
And the ambient lighting assists with sustainability also, providing low-level security illumination without needing to power up task-type lighting. Just as with personalized spotlights, adjustable ambient fixtures ensure light shines precisely where required.
Together, ambient and adjustable spotlighting join forces as complete, customizable lighting solutions for commercial spaces seeking visual comfort, navigation assistance, sustainability, and security after dusk.
Smart Lighting Solutions for Adjustable Wall Lights
With networked fixture intelligence, property managers enjoy next-level lighting control via software and automation. Smart adjustable lighting allows remote programming, monitoring, and diagnosis — all from mobile devices or computers. Preset controls activate scheduled dimming, color tuning, motion-based illumination, and more. 0-10V dimming and DALI-2 are the two dominant commercial protocols; DALI-2 supports addressable per-fixture control and energy reporting, while 0-10V is simpler, lower-cost, and universal across drivers.
Software integrations enable lighting adjustments on-the-fly to match business needs or events. Smart networks also reduce energy waste, ensuring lights activate only during occupied hours or flick off when sufficient natural light is available. Bi-level occupancy sensing — holding 30-50% output when the space is unoccupied and ramping to 100% on motion — is the baseline strategy and typically delivers 40-60% energy savings beyond the LED swap itself.
Future-Forward Illumination Solutions
As sustainable lighting demands grow, expect leading adjustable wall light manufacturers to continue advancing capabilities in areas like:
- Greater lighting precision and distribution flexibility (field-swappable optics, tool-less aiming)
- Expanded networked controls through smart-city connections (Zhaga Book 18 socket, Bluetooth mesh)
- More energy optimization features and automated diagnostics (L70 lumen maintenance reporting, driver fault alerts)
- Added options for color temperature and hue tuning (3000K/4000K/5000K switchable, tunable-white 2700K-6500K)
With limitless design potential, adjustable commercial wall lighting promises bright futures — in every sense — for innovative businesses lighting the way. These sleek luminaires merge aesthetics, functionality, and intelligent controls into adaptable profiles that transform ordinary buildings into vibrant after-dark venues.
Whether relied upon for accenting architecture, spotlighting signage, guiding pedestrians, or setting enjoyable ambiances, adjustable wall lights deliver personality and custom-tailored function. They help commercial properties put their best face forward at night for aesthetics and around-the-clock security.
Conclusion
Adjustable LED wall lights offer commercial property owners a rare combination: premium aesthetics, operational flexibility, and measurable energy savings in a single fixture. Tilt-lock heads let the installer aim light precisely — facade, signage, pathway, or parking — without swapping hardware, while modern LED sources at 130-150 lm/W replace 150-250W HID fixtures at 40-80W and cut overnight energy 50-70%.
Paired with IP65 weather durability, L70 100,000-hour life, DLC Premium qualification, and integrated photocell plus bi-level motion controls, a properly-specified adjustable wall pack is a 15-20 year asset that stays out of the service budget while delivering BUG-compliant, dark-sky-friendly illumination. Our full catalog of adjustable LED wall lights and LED wall pack lights spans 20-120W configurations — or contact our lighting specialists for photometric layouts and beam-angle guidance tailored to your facade. Learn more about LED Light Expert and our 30+ years of commercial lighting expertise.
Adjustability Helps Only When Aiming Is Controlled
Adjustable wall lights can improve commercial lighting when they aim light toward doors, signs, loading areas, walkways, or security zones. Lock the aim after commissioning and check glare, spill light, mounting height, wet rating, controls, and maintenance access.
| Use | Aiming check |
|---|---|
| Door | Light faces and thresholds without lens glare. |
| Sign | Even coverage and no neighbor spill. |
| Loading area | Reduce shadows behind trucks and equipment. |
