How Many High Bay Lights Do I Need For My Warehouse

Posted by Dara Greaney on 9/4/2016 to LED Lights

Quick Answer

Estimate warehouse high bay fixture count with this sequence: square footage x target foot-candles = total lumens, then divide by delivered lumens per fixture and adjust for mounting height, beam angle, rack layout, and shadow control. As a rough starting point, many 15-20 foot warehouses use 100W to 150W LED UFO high bays spaced about 12 to 18 feet apart. Final layouts should be checked with a lighting plan when safety, detailed work, or code compliance matters.

How many light fixtures do I need for my warehouse?

We get this question every week, and the right answer depends on ceiling height, fixture output, beam angle, work type, rack layout, and wiring. The examples below show how we think through real warehouse and shop requests without pretending there is one universal fixture count.

Quick Guide to How Many Warehouse Lighting Fixtures You Need

Here are some quick rules of thumb for choosing the right brightness and spacing for your LED high bay lights:

Brightness: The brightness of the LED high bay lights depends on the height of the ceiling and the beam angle of the light. The higher the ceiling, the higher the lumen output you need. The narrower the beam angle, the more concentrated the light. Here are some examples of brightness levels for different ceiling heights and beam angles:

• 14,000 lumens at 120 degrees from 10 to 15 feet

• 21,000 lumens at 120 degrees from 14 to 20 feet

• 35,000 lumens at 120 degrees from 20 to 30 feet

• 42,000+ lumens at 30+ feet but with a 60, 90, or 120 degree lens

Spacing: The spacing of the LED high bay lights depends on the height of the ceiling and the coverage area of the light. A general rule is to space them out at the same distance as the height of the ceiling. For example, if your ceiling is 10 feet high, space them out every 10 feet. If your ceiling is 15 feet high, space them out every 15 feet. However, this rule may vary depending on the shape and size of your space and the beam angle of your light. For example, if your ceiling is above 25 feet high, you may need to space them out closer, go brighter or use a different lens to get enough light. You can also call us for a free lighting layout to calculate the optimal spacing for your space.

Here are some recent examples

Here is the email:

I have a 40x70 warehouse that I will be working on and detailing cars. I want to convert from old lighting to led primarily for brighter lighting and lower energy costs. The lights are currently at 17 feet above floor. I was looking at your 150 watt High Bay UFO lights and your 100 watt High Bay UFO lights. Would this be appropriate? How many would I need and how far apart etc. thank you. Bob

Here is our first answer:

Bob,

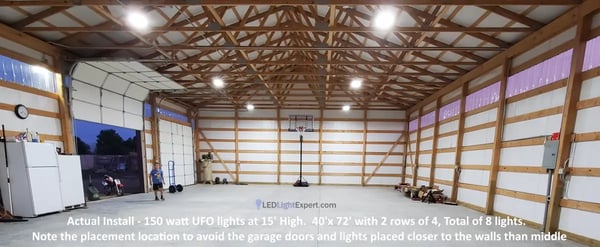

Thanks for reaching out. Those fixtures are a reasonable starting point for this layout. At 17 feet high you can go 100 watts or 150 with a 120 wide angle. That is the angle the light comes out at. I usually do not recommend 150 watts until we get closer to 18 feet high and up. You are right at the cut off.

1. Use the 150 watt high bay lights and use 120 wide which is standard. 14-20 feet we recommend the 150 watts. At 17 feet you can go wider angle and still get good light to the ground. So the 6x3 pattern would give you good coverage. 7x3 for 21 lights for higher brightness.

If you can run additional wiring, we can also do all of this with dimmable high bay light versions so you can go a bit brighter and adjust down to save energy. You can create a few sections. Maybe dim down half of the warehouse where it's just parked cars and leave the rest full brightness. See our knowledge base and video on 0-10v dimming for more info on these.

2. Use 100 watt High Bay lights and space them out every 8-14 feet (8 for high brightness, 14 for adequate). A 6x3 pattern for example is 18 lights for basic lighting, or go 7x3 (or 6x4/8x3 depending on wiring) for 21-24 lights to get a medium brightness level. 8x4 for 32 would be very high brightness. So that’s just an estimate. Somewhere in there.

21 of the 100 watts in dimmable industrial bay LEDs would probably be my recommendation for bright lighting. (without knowing more)

There is bulk pricing on all of this too. Choice of angle and light color. All inclusive. 5 year Warranty, full liability insurance, USA toll free phone support and no tax outside of CA.

Feel free to give me a call and I can answer any other questions.

Thanks

Bill

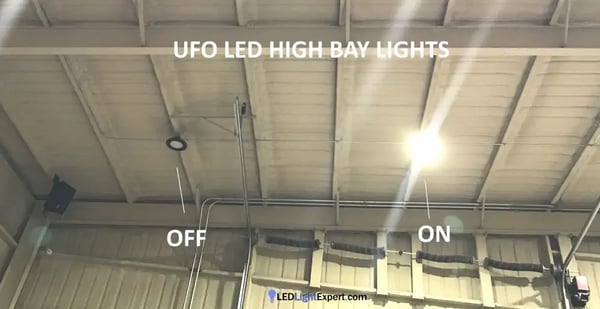

LED ufo high-ceiling luminaires installed

Here is a 2nd email:

I have a 30x40 shop and need to know how to light it. The sides are 14ft and the peak is 17ft. What do I use? Jim R

Here is our 2nd answer:

Jim R

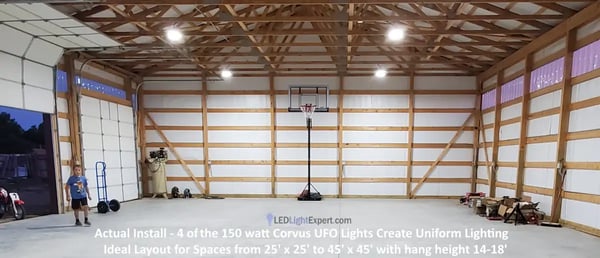

Thanks for reaching out. Our standard starting layout for a shop like this is often 2 rows of 2, for 4 lights. Anything from 20-40ft x 20-40ft fits right in there and gets great results. I would recommend 4 of our 150 watt UFO overhead bay fixtures. We usually avoid using fewer than 4 fixtures because light from at least 2 directions reduces shadowing. So even on The 20x20 we go to 4, it's a bit overkill with lumens but the uniformity is more important. See the image above to see what happens when one light is out, lots of heavy shadowing.

Dan

When in Doubt - Talk to an Expert

So you can see there are so many variables in lighting design that you have to think through lots of options. Number of fixtures, brightness, height, light angle, wiring locations, and control zones all matter. There is a whole science called photometrics that does awesome analysis on this. For larger buildings they can do a full design. On something like this it’s just not worth it.

Bob, the car-detailing customer, went with 21 of the 100 watt LED Industrial bay LEDs and emailed us later on to say that they were very pleased.

How to Turn the Examples Into a Real Fixture Count

Use the examples above as starting points, not as a one-size-fits-all answer. A warehouse with open floor space can often use wider spacing than a warehouse with tall racks, detail work, or aisles where shadows matter.

Decide the target light level first: storage, vehicle detailing, packing, inspection, and gym use do not need the same foot-candles.
Use delivered lumens from the fixture, not the old metal-halide wattage, when comparing options.
Check ceiling height, beam angle, row spacing, and whether dimming gives you room to tune the final result.

When the fixture count is close, choose the layout that gives better uniformity and fewer dark pockets. More fixtures at a lower output can be better than fewer fixtures pushed too hard.

Frequently Asked Questions

How do I estimate how many high bay lights I need?: Start with square footage and target foot-candles, divide the required lumens by the delivered lumens per fixture, then adjust for mounting height, beam angle, racks, shadows, and wiring layout.

Is fixture spacing the same as ceiling height?: Ceiling height is a useful starting point for spacing, but beam angle, lens choice, task brightness, and rack layout can push fixtures closer together or farther apart.

Should I use 100W or 150W LED high bays?: Many 14 to 20 foot spaces use 100W to 150W UFO high bays, but the better choice depends on the light level needed at the floor and whether dimming will be used.

When should I get a lighting layout?: Use a lighting layout when the space has safety requirements, detailed work, tall racks, inspection tasks, or code-driven light levels.

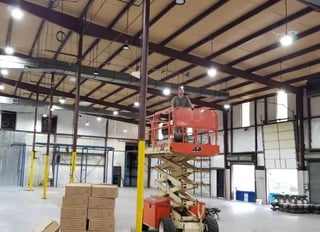

LED High Bay Lights Guide

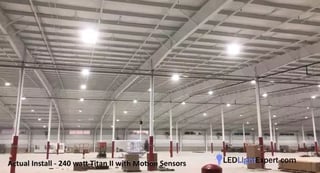

LED Warehouse Lights Guide
