Quick Answer
Yes, most halogen bulbs can be replaced with LED bulbs or LED fixtures, but you must match the base, voltage, fixture size, dimming method, beam angle, color temperature, and lumen output. For a quick wattage estimate, divide halogen watts by about 5 or 6, then verify lumens. Low-voltage MR16 and similar fixtures may also need an LED-compatible transformer or driver.
Are You Looking For The Right LED Replacement For Halogen Bulbs?
You might have experienced that halogen bulbs burn so hot they risk injury or fire. LED lights are cooler to the touch, safer and more energy efficient.
If you want to replace your halogen bulbs with LED bulbs, you need to make sure that the LED bulbs are compatible with your existing fixtures and sockets. Some LED bulbs may require a transformer or a driver to work properly with low voltage halogen fixtures, while others can use LED retrofit kits for a direct swap. You also need to check the wattage and lumens of the LED bulbs to ensure that they provide enough light for your needs. You can find more information about how to choose the right LED bulb or light fixture for your halogen fixture below:
What are Halogen Bulbs?
Halogen bulbs are a type of incandescent light bulbs that use a halogen gas, such as iodine or bromine, to increase the light output and the lifespan of the tungsten filament inside the bulb. Halogen bulbs produce a bright and warm light that can be dimmed and controlled. They are often used for projectors, spotlights, and decorative lighting. However, halogen bulbs are also less efficient, more expensive, and hotter than LED bulbs, which are becoming more popular and widely available. Halogen bulbs are also being phased out in some countries due to their environmental impact.
Why use LED to Replace Halogen bulbs?
There are several reasons why you might want to replace halogen bulbs with LED bulbs. Here are some of the main benefits of LED bulbs over halogen bulbs:
• LED bulbs last much longer than halogen bulbs, which means you don't have to replace them as often. LED bulbs can last between 20,000 to 50,000 hours, while halogen bulbs typically last around 2,000 hours.
• LED bulbs are more energy-efficient than halogen bulbs, which means you can save money on your electricity bills and reduce your carbon footprint. LED bulbs use about 75% less energy than halogen bulbs.
• LED bulbs produce less heat than halogen bulbs, which means they are safer and more comfortable to use. Halogen bulbs can get very hot and pose a fire hazard or burn your skin if you touch them. LED bulbs stay cool and do not emit any harmful UV rays
• LED bulbs are more versatile and flexible than halogen bulbs, which means you can use them for different purposes and in different settings. LED bulbs come in various colors, shapes, and sizes, and can be dimmed or controlled remotely. From outdoor flood lights to interior downlights, they can create different effects and moods with their light quality
How many lumens per watt is halogen?
The average lumens per watt for halogen bulbs is around 16 to 22 lm/W. This means that a halogen bulb produces 16 to 22 lumens of light for every watt of power it consumes. However, this value may vary depending on the type, age, and quality of the halogen bulb. For comparison, the average lumens per watt for LED bulbs is around 110 lm/W, which makes them much more efficient and eco-friendly than halogen bulbs.
What is the LED conversion for halogen?
A practical rule is to divide by 5 or 6. So some examples are;
• 1500-watt halogen: use a 300-watt LED light bulb or LED light Fixture with about 35,000 to 45000 lumens
• 1000-watt halogen: use a 150-watt LED light bulb or LED light Fixture with about 18,000 to 24,000 lumens
• 500-watt halogen: use a 100-watt LED light bulb or LED light Fixture with about 9,000 to 12,000 lumens
• 250-watt halogen: use a 50-watt LED light bulb or LED light Fixture with about 4500 to 6000 lumens
• 100-watt halogen: use a 20-watt LED light bulb or LED light Fixture with about 1800 to 2400 lumens
Do you have quartz halogen? They are a little more efficient. See our article on Quartz Halogen to LED replacement wattages.
How do you find the correct LED mount for replacing halogen Lights?
• 3/4" Knuckle
A 3/4" knuckle mount is a type of mounting bracket that allows for attaching a light fixture to a 3/4" conduit or pipe. The knuckle mount has a threaded hole that fits the conduit and a swivel joint that can adjust the angle of the light. Knuckle mounts are often used for flood lights, spot lights, or barn lights that need to be directed to a specific area.
• Flood Mount
This is a flat U shaped light that secures to either side of the fixture. It can be angled up or down, but not sideways after installation.
Before Replacing Halogen With LED
LED can replace many halogen bulbs, but the match has to be made by base, voltage, fixture type, dimming method, beam angle, color temperature, and physical clearance. Low-voltage MR16 and landscape lamps can be especially sensitive to transformer and dimmer compatibility.
| Halogen detail | LED replacement check |
|---|---|
| Line voltage or low voltage | Confirm 120V, 12V, or 24V and transformer compatibility. |
| Beam angle | Match spot, narrow flood, or flood distribution to the original task. |
| Dimming | Use LED-compatible dimmers or lamps listed for the existing dimmer type. |
| Heat and enclosure | Check enclosed-fixture and recessed-can ratings before installation. |
Frequently Asked Questions
Can you replace halogen bulbs with LED?
Yes, most halogen bulbs can be replaced with LED equivalents. Check that the LED bulb matches your fixture socket type and voltage. LED replacements use about 75% less energy and last 10-25 times longer than halogen bulbs.
Can I replace halogen bulbs with LED?
Yes. Start by identifying your halogen bulb shape, base type, and wattage. Then select an LED bulb that fits the same socket and provides equivalent lumens. A common conversion is to divide halogen wattage by 5 or 6 to find the LED wattage needed.
Can halogen bulbs be replaced with LED?
Yes, halogen bulbs can be replaced with LED. For low-voltage halogen fixtures (such as 12V MR16 spots), you may need a compatible LED driver or transformer. For line-voltage halogen fixtures, most LED bulbs are direct drop-in replacements with no additional hardware.
Can you replace a halogen bulb with an LED bulb?
Yes. Replacing a halogen bulb with an LED bulb provides major benefits: LED bulbs last 20,000 to 50,000 hours versus about 2,000 for halogen, they run much cooler reducing fire risk, and they produce the same brightness at a fraction of the energy cost.
Can a halogen bulb be replaced with LED?
Yes. For wattage conversion, divide the halogen wattage by 5 or 6. For example, a 500W halogen is replaced by a 100W LED producing 9,000 to 12,000 lumens. A 1000W halogen is replaced by a 150W LED producing 18,000 to 24,000 lumens.
How many lumens does a halogen bulb produce?
A halogen bulb produces about 16 to 22 lumens for every watt it consumes, so a 500-watt halogen puts out roughly 8,000 to 11,000 lumens. Actual output varies with the type, age, and quality of the bulb.
Related Articles

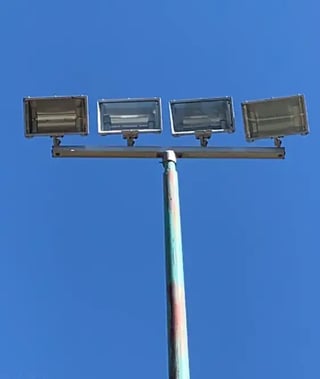

What is the Quartz Halogen Bulb LED Replacement? LED Lighting Guide Replace quartz halogen bulbs with LED. Explore LED replacements for 1500W, 1000W, and other halogens.

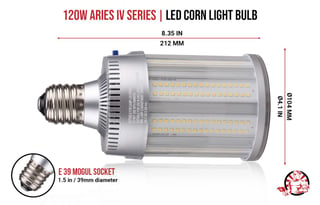

LED Corn Light Bulbs The Metal Halide LED Replacements LED Lighting Guide LED Corn Light Bulbs — The Metal Halide LED Replacements. Expert guide from LED Light Expert.
